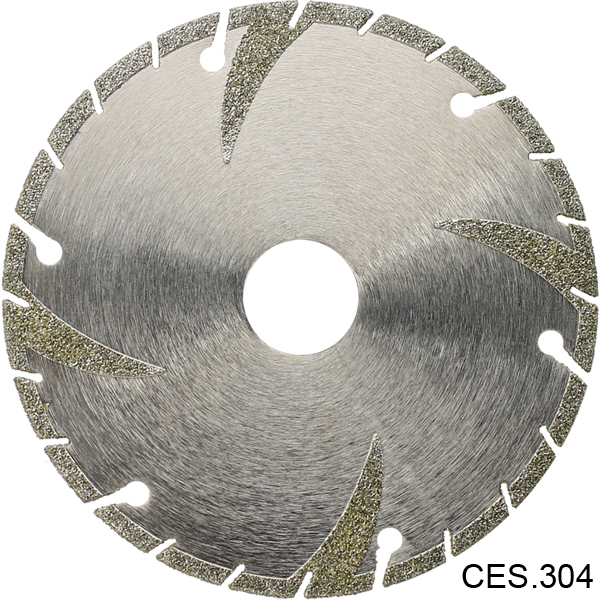

Diamond Circular Saw Blade – Electroplated
Item No.: CES.304.
Tech.: Electroplated
App.: General purpose – Glass, Granite, Marble, Stone…
Use: Segmented – Wet
Machine: Circular saw, Angle grinder, Table saw, Portable saw…
| Item No.: | D. mm | D. inch | B | b | d | Seg.Ht |
| CES.304.105 | 105 | 4” | 1.8 | 1.2 | 20 | 5 / 7 |
| CES.304.110 | 110 | 4-3/8” | 1.8 | 1.2 | 20 | 5 / 7 |
| CES.304.115 | 115 | 4-1/2” | 1.8 | 1.2 | 22.23 | 5 / 7 |
| CES.304.125 | 125 | 5” | 1.8 | 1.2 | 22.23 | 5 / 7 |
| CES.304.150 | 150 | 6” | 2.0 | 1.4 | 22.23 | 5 / 7 |
| CES.304.180 | 180 | 7” | 2.2 | 1.6 | 22.23 | 5 / 7 |
| CES.304.200 | 200 | 8” | 2.2 | 1.6 | 22.23 | 5 / 7 |
| CES.304.230 | 230 | 9” | 2.4 | 1.8 | 22.23 | 5 / 7 |
| CES.304.250 | 250 | 10” | 2.4 | 1.8 | 25.4 | 5 / 7 |
| CES.304.300 | 300 | 12” | 2.6 | 2.0 | 25.4 | 5 / 7 |
| CES.304.350 | 350 | 14” | 2.8 | 2.2 | 50 | 5 / 7 |
| CES.304.400 | 400 | 16” | 3.0 | 2.4 | 50 | 5 / 7 |
| CES.304.450 | 450 | 18” | 3.0 | 2.4 | 50 | 5 / 7 |
| CES.304.500 | 500 | 20” | 3.6 | 3.0 | 50 | 5 / 7 |
