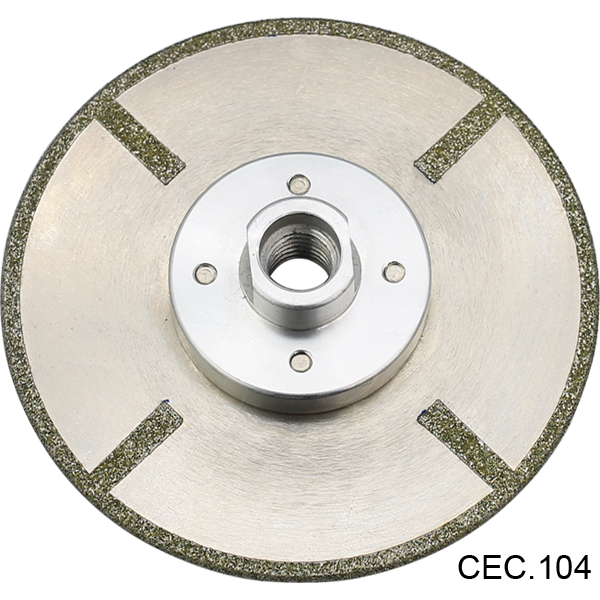

Diamond Circular Saw Blade – Electroplated
Item No.: CEC.104.
Tech.: Electroplated
App.: General purpose – Glass, Granite, Marble, Stone…
Use: Continuous – Wet
Machine: Circular saw, Angle grinder, Table saw, Portable saw…
| Item No.: | D. mm | D. inch | B | b | d | Seg.Ht |
| CEC.104.105 | 105 | 4” | 1.8 | 1.2 | 20 | 5 / 7 |
| CEC.104.110 | 110 | 4-3/8” | 1.8 | 1.2 | 20 | 5 / 7 |
| CEC.104.115 | 115 | 4-1/2” | 1.8 | 1.2 | 22.23 | 5 / 7 |
| CEC.104.125 | 125 | 5” | 1.8 | 1.2 | 22.23 | 5 / 7 |
| CEC.104.150 | 150 | 6” | 2.0 | 1.4 | 22.23 | 5 / 7 |
| CEC.104.180 | 180 | 7” | 2.2 | 1.6 | 22.23 | 5 / 7 |
| CEC.104.200 | 200 | 8” | 2.2 | 1.6 | 22.23 | 5 / 7 |
| CEC.104.230 | 230 | 9” | 2.4 | 1.8 | 22.23 | 5 / 7 |
| CEC.104.250 | 250 | 10” | 2.4 | 1.8 | 25.4 | 5 / 7 |
| CEC.104.300 | 300 | 12” | 2.6 | 2.0 | 25.4 | 5 / 7 |
| CEC.104.350 | 350 | 14” | 2.8 | 2.2 | 50 | 5 / 7 |
| CEC.104.400 | 400 | 16” | 3.0 | 2.4 | 50 | 5 / 7 |
| CEC.104.450 | 450 | 18” | 3.0 | 2.4 | 50 | 5 / 7 |
| CEC.104.500 | 500 | 20” | 3.6 | 3.0 | 50 | 5 / 7 |
