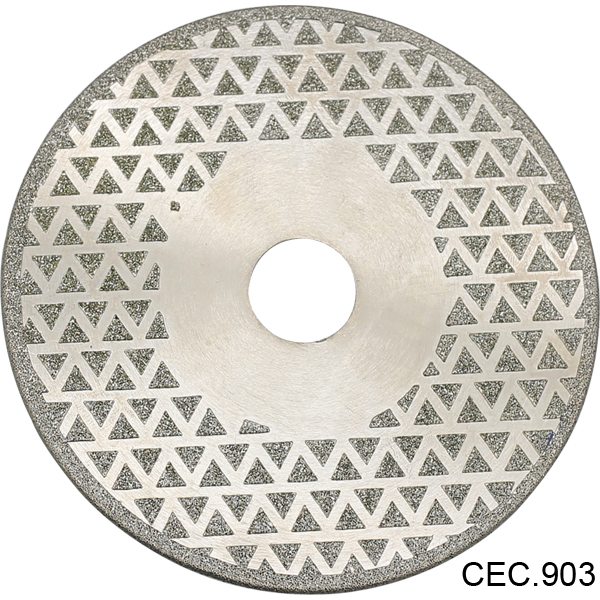

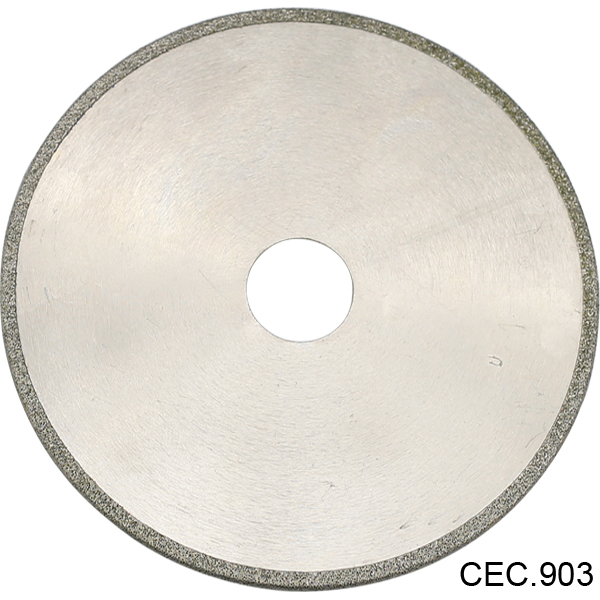

Diamond Circular Saw Blade – Electroplated
Item No.: CEC.903.
Tech.: Electroplated
App.: General purpose – Glass, Ceramic, Granite, Marble, Stone…
Use: Continuoous rim – Wet
Machine: Circular saw, Angle grinder, Table saw, Portable saw…
| Item No.: | D. mm | D. inch | B | b | d | Seg.Ht |
| CEC.903.105 | 105 | 4” | 1.8 | 1.2 | 20 | 5 / 7 |
| CEC.903.110 | 110 | 4-3/8” | 1.8 | 1.2 | 20 | 5 / 7 |
| CEC.903.115 | 115 | 4-1/2” | 1.8 | 1.2 | 22.23 | 5 / 7 |
| CEC.903.125 | 125 | 5” | 1.8 | 1.2 | 22.23 | 5 / 7 |
| CEC.903.150 | 150 | 6” | 2.0 | 1.4 | 22.23 | 5 / 7 |
| CEC.903.180 | 180 | 7” | 2.2 | 1.6 | 22.23 | 5 / 7 |
| CEC.903.200 | 200 | 8” | 2.2 | 1.6 | 22.23 | 5 / 7 |
| CEC.903.230 | 230 | 9” | 2.4 | 1.8 | 22.23 | 5 / 7 |
