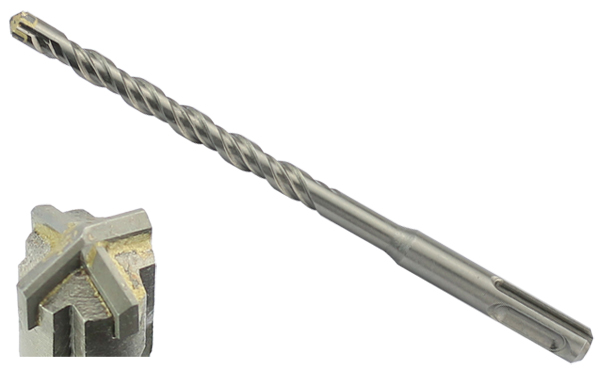

SDS-plus Shank Hammer Drill Bits, Cross Tips
Material: Tips - YG8, Body: 40Cr
App.: General purpose - Stone, Concrete, Wall...
Feature: Accuracy hole sizes.
| d | L | d | L | d | L | d | L | |||
| 5 | 110 | 11 | 310 | 16 | 260 | 22 | 310 | |||
| 5 | 160 | 12 | 110 | 16 | 310 | 22 | 350 | |||
| 6 | 110 | 12 | 160 | 16 | 350 | 22 | 400 | |||
| 6 | 160 | 12 | 210 | 16 | 450 | 22 | 450 | |||
| 6 | 210 | 12 | 260 | 16 | 500 | 25 | 310 | |||
| 6 | 260 | 12 | 310 | 16 | 600 | 25 | 350 | |||
| 6 | 310 | 12 | 350 | 16 | 800 | 25 | 450 | |||
| 6.5 | 110 | 12 | 450 | 16 | 1000 | 25 | 600 | |||
| 6.5 | 160 | 12 | 600 | 17 | 210 | 25 | 800 | |||
| 6.5 | 210 | 12 | 800 | 17 | 400 | 25 | 1000 | |||
| 6.5 | 260 | 12 | 1000 | 18 | 210 | 26 | 310 | |||
| 7 | 110 | 13 | 160 | 18 | 260 | 26 | 350 | |||
| 7 | 160 | 13 | 210 | 18 | 300 | 26 | 400 | |||
| 7 | 210 | 13 | 260 | 18 | 310 | 26 | 450 | |||
| 7 | 260 | 13 | 310 | 18 | 350 | 26 | 500 | |||
| 8 | 110 | 13 | 450 | 18 | 400 | 26 | 600 | |||
| 8 | 160 | 14 | 110 | 18 | 450 | 26 | 800 | |||
| 8 | 210 | 14 | 160 | 18 | 500 | 26 | 1000 | |||
| 8 | 260 | 14 | 210 | 18 | 600 | 28 | 310 | |||
| 8 | 310 | 14 | 260 | 18 | 800 | 28 | 350 | |||
| 8 | 350 | 14 | 310 | 18 | 1000 | 28 | 400 | |||
| 8 | 450 | 14 | 350 | 19 | 310 | 28 | 450 | |||
| 10 | 110 | 14 | 450 | 19 | 450 | 28 | 500 | |||
| 10 | 160 | 14 | 600 | 20 | 260 | 28 | 600 | |||
| 10 | 210 | 14 | 800 | 20 | 310 | 28 | 800 | |||
| 10 | 260 | 14 | 1000 | 20 | 350 | 28 | 1000 | |||
| 10 | 310 | 15 | 160 | 20 | 400 | 30 | 350 | |||
| 10 | 350 | 15 | 210 | 20 | 450 | 30 | 400 | |||
| 10 | 450 | 15 | 260 | 20 | 500 | 30 | 450 | |||
| 10 | 600 | 15 | 310 | 20 | 600 | 30 | 500 | |||
| 10 | 800 | 15 | 450 | 20 | 800 | 30 | 600 | |||
| 11 | 160 | 16 | 160 | 20 | 1000 | 30 | 800 | |||
| 11 | 210 | 16 | 210 | 22 | 210 | 30 | 1000 |
