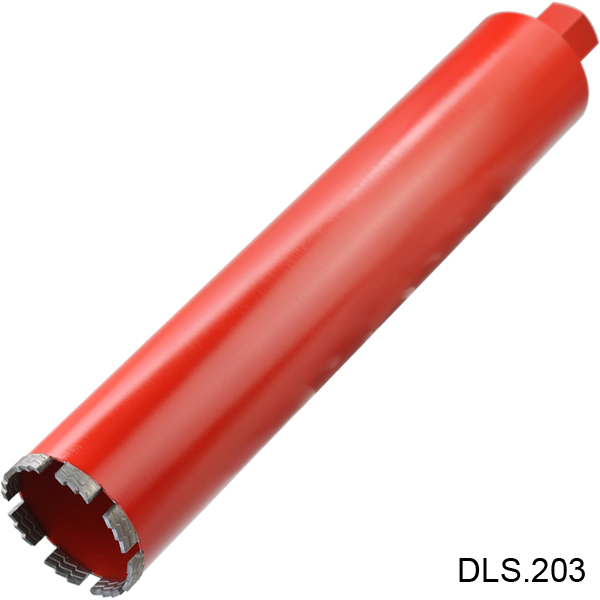

Diamond Core Drill – Laser Welded
Item No.: DLS.203.
Tech.: Laser Welded
App.: Concrete, wall, building material …
Use: Segmented – Wet
Machine: Wall drilling machine…
| Item No.: | D. mm | D. inch | Item No.: | D. mm | D. inch | |
| DLS.203.012 | 12 | 1/2 | DLS.203.070 | 70 | 2-3/4 | |
| DLS.203.014 | 14 | 9/16 | DLS.203.076 | 76 | 3” | |
| DLS.203.016 | 16 | 5/8 | DLS.203.082 | 82 | 3-1/4 | |
| DLS.203.018 | 18 | 11/16 | DLS.203.089 | 89 | 3-1/2 | |
| DLS.203.019 | 19 | 3/4 | DLS.203.096 | 96 | 3-3/4 | |
| DLS.203.020 | 20 | 13/16 | DLS.203.102 | 102 | 4” | |
| DLS.203.022 | 22 | 7/8 | DLS.203.108 | 108 | 4-1/4 | |
| DLS.203.024 | 24 | 15/16 | DLS.203.114 | 114 | 4-1/2 | |
| DLS.203.025 | 25 | 1” | DLS.203.120 | 120 | 4-3/4 | |
| DLS.203.028 | 28 | 1-1/8 | DLS.203.127 | 127 | 5” | |
| DLS.203.030 | 30 | 1-3/16 | DLS.203.133 | 133 | 5-1/4 | |
| DLS.203.032 | 32 | 1-1/4 | DLS.203.140 | 140 | 5-1/2 | |
| DLS.203.035 | 35 | 1-3/8 | DLS.203.152 | 152 | 6” | |
| DLS.203.038 | 38 | 1-1/2 | DLS.203.178 | 178 | 7” | |
| DLS.203.040 | 40 | 1-5/8 | DLS.203.203 | 203 | 8” | |
| DLS.203.045 | 45 | 1-3/4 | DLS.203.230 | 230 | 9” | |
| DLS.203.048 | 48 | 1-7/8 | DLS.203.254 | 254 | 10” | |
| DLS.203.051 | 51 | 2” | DLS.203.305 | 305 | 12” | |
| DLS.203.057 | 57 | 2-1/4 | DLS.203.350 | 350 | 14” | |
| DLS.203.064 | 64 | 2-1/2 | DLS.203.400 | 400 | 16” |

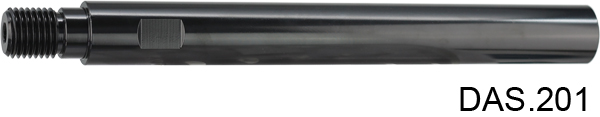

Extention Rod:
Adaptor: 1-1/4UNC.
Length (inch): 10", 12", 14", 16", 18", 20", 24" .
Length (mm): 250, 300, 350, 400, 450, 500, 600mm
