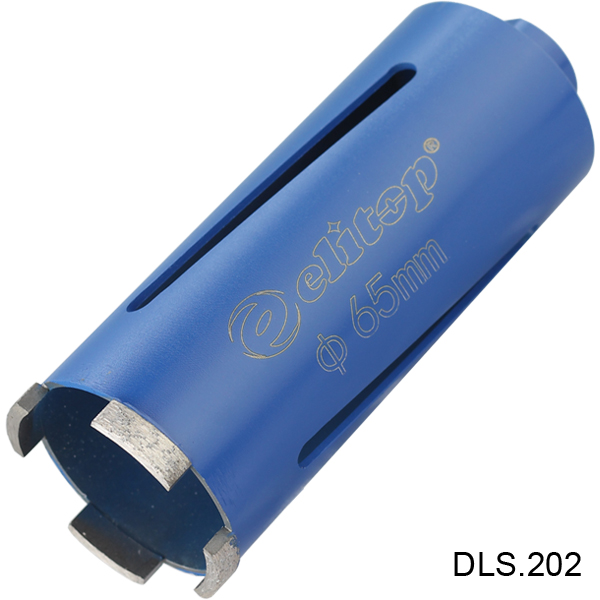

Diamond Core Drill – Laser Welded
Item No.: DLS.202.
Tech.: Laser Welded
App.: Concrete, wall, building material …
Use: Segmented – Dry or Wet

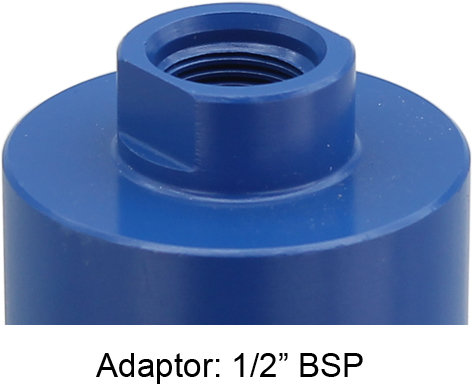

Adaptor：1/2BSP, M14, M16, 5/8"UNC...

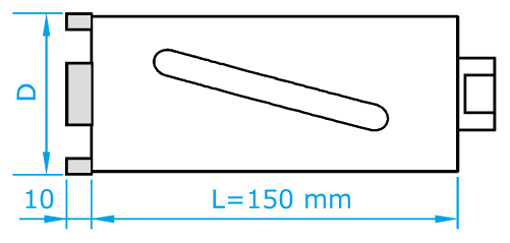

| Item No.: | D. mm | D. inch | Item No.: | D. mm | D. inch | |
| DLS.202.012 | 12 | 1/2 | DLS.202.065 | 65 | 2-1/2 | |
| DLS.202.014 | 14 | 9/16 | DLS.202.068 | 68 | 2-5/8 | |
| DLS.202.016 | 16 | 5/8 | DLS.202.070 | 70 | 2-3/4 | |
| DLS.202.018 | 18 | 11/16 | DLS.202.075 | 75 | 3” | |
| DLS.202.019 | 19 | 3/4 | DLS.202.080 | 80 | 3-1/8 | |
| DLS.202.020 | 20 | 13/16 | DLS.202.082 | 82 | 3-1/4 | |
| DLS.202.022 | 22 | 7/8 | DLS.202.085 | 85 | 3-3/8 | |
| DLS.202.024 | 24 | 15/16 | DLS.202.090 | 90 | 3-1/2 | |
| DLS.202.025 | 25 | 1” | DLS.202.100 | 100 | 4” | |
| DLS.202.028 | 28 | 1-1/8 | DLS.202.108 | 108 | 4-1/4 | |
| DLS.202.030 | 30 | 1-3/16 | DLS.202.110 | 110 | 4-3/8 | |
| DLS.202.032 | 32 | 1-1/4 | DLS.202.115 | 115 | 4-1/2 | |
| DLS.202.035 | 35 | 1-3/8 | DLS.202.120 | 120 | 4-3/4 | |
| DLS.202.038 | 38 | 1-1/2 | DLS.202.125 | 125 | 5” | |
| DLS.202.040 | 40 | 1-5/8 | DLS.202.150 | 150 | 6” | |
| DLS.202.045 | 45 | 1-3/4 | DLS.202.180 | 180 | 7” | |
| DLS.202.051 | 51 | 2” | DLS.202.200 | 200 | 8” | |
| DLS.202.057 | 57 | 2-1/4 | DLS.202.230 | 230 | 9” | |
| DLS.202.060 | 60 | 2-3/8 | DLS.202.250 | 250 | 10” |
