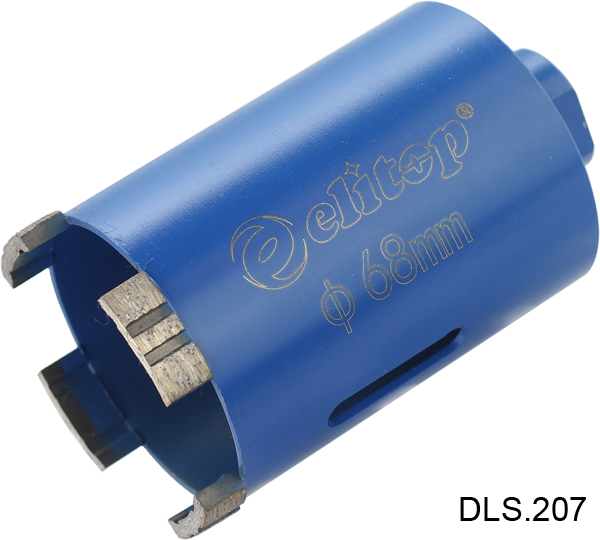

Diamond Core Drill – Laser Welded
Item No.: DLS.207.
Tech.: Laser Welded
App.: Concrete, wall, building material …
Use: Segmented – Dry or wet

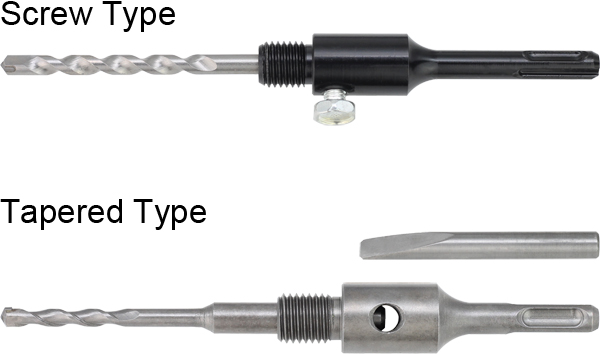

Adaptor.: M14, M16, 5/8UNC, 1/2BPS ...
| Item No.: | D. mm | D. inch | Item No.: | D. mm | D. inch | |
| DLS.207.012 | 12 | 1/2 | DLS.207.055 | 55 | 2-1/4 | |
| DLS.207.014 | 14 | 9/16 | DLS.207.060 | 60 | 2-3/8 | |
| DLS.207.016 | 16 | 5/8 | DLS.207.065 | 65 | 2-1/2 | |
| DLS.207.018 | 18 | 11/16 | DLS.207.070 | 70 | 2-3/4 | |
| DLS.207.019 | 19 | 3/4 | DLS.207.075 | 75 | 3” | |
| DLS.207.020 | 20 | 13/16 | DLS.207.080 | 80 | 3-1/8 | |
| DLS.207.022 | 22 | 7/8 | DLS.207.085 | 85 | 3-1/4 | |
| DLS.207.024 | 24 | 15/16 | DLS.207.090 | 90 | 3-1/2 | |
| DLS.207.026 | 26 | 1” | DLS.207.095 | 95 | 3-3/4 | |
| DLS.207.028 | 28 | 1-1/8 | DLS.207.100 | 100 | 4” | |
| DLS.207.030 | 30 | 1-3/16 | DLS.207.108 | 108 | 4-1/4 | |
| DLS.207.032 | 32 | 1-1/4 | DLS.207.110 | 110 | 4-3/4 | |
| DLS.207.035 | 35 | 1-3/8 | DLS.207.120 | 120 | 5” | |
| DLS.207.040 | 40 | 1-1/2 | DLS.207.125 | 125 | 5-1/2 | |
| DLS.207.045 | 45 | 1-3/4 | DLS.207.150 | 150 | 6” | |
| DLS.207.050 | 50 | 2” | DLS.207.158 | 158 | 6-1/4 | |
| DLS.207.053 | 53 | 2-1/8 | DLS.207.165 | 165 | 6-1/2 |
