DIN338 Parallel shank Twist Drills

HSS parallel Shank Twist DrillsNorm: DIN338, ISO235, GB/T1436Material: HSS, HSS-CobaltTech.: Rolled forged, Fully ground.App.: General Purpose - Metal, plastic, wood ...

HSS parallel Shank Twist Drills

Norm: DIN338, ISO235, GB/T1436

Material: HSS, HSS-Cobalt

Tech.: Rolled forged, Fully ground.

App.: General Purpose - Metal, plastic, wood ...

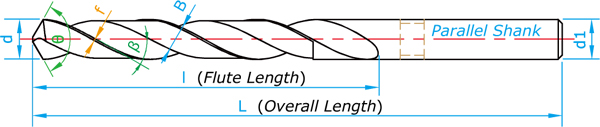

drill metric.jpg

d	l	L	d	l	L	d	l	L	d	l	L
0.3	3	19	3.5	39	70	7.1	69	109	10.7	94	142
0.4	5	20	3.6	39	70	7.2	69	109	10.8	94	142
0.5	6	22	3.7	39	70	7.3	69	109	10.9	94	142
0.6	7	24	3.8	43	75	7.4	69	109	11	94	142
0.7	9	28	3.9	43	75	7.5	69	109	11.1	94	142
0.75	9	28	4	43	75	7.6	75	117	11.2	94	142
0.8	10	30	4.1	43	75	7.7	75	117	11.3	94	142
0.9	11	32	4.2	43	75	7.8	75	117	11.4	94	142
1	12	34	4.3	47	80	7.9	75	117	11.5	94	142
1.1	14	36	4.4	47	80	8	75	117	11.6	94	142
1.2	16	38	4.5	47	80	8.1	75	117	11.7	94	142
1.25	16	38	4.6	47	80	8.2	75	117	11.8	94	142
1.3	16	38	4.7	47	80	8.3	75	117	11.9	101	151
1.4	18	40	4.8	52	86	8.4	75	117	12	101	151
1.5	18	40	4.9	52	86	8.5	75	117	12.1	101	151
1.6	20	43	5	52	86	8.6	81	125	12.2	101	151
1.7	20	43	5.1	52	86	8.7	81	125	12.3	101	151
1.75	22	46	5.2	52	86	8.8	81	125	12.4	101	151
1.8	22	46	5.3	52	86	8.9	81	125	12.5	101	151
1.9	22	46	5.4	57	93	9	81	125	12.6	101	151
2	24	49	5.5	57	93	9.1	81	125	12.7	101	151
2.1	24	49	5.6	57	93	9.2	81	125	12.8	101	151
2.2	27	53	5.7	57	93	9.3	81	125	12.9	101	151
2.25	27	53	5.8	57	93	9.4	81	125	13	101	151
2.3	27	53	5.9	57	93	9.5	81	125	13.5	108	160
2.4	30	57	6	57	93	9.6	87	133	14	108	160
2.5	30	57	6.1	63	101	9.7	87	133	14.5	114	169
2.6	30	57	6.2	63	101	9.8	87	133	15	114	169
2.7	33	61	6.3	63	101	9.9	87	133	15.5	120	178
2.8	33	61	6.4	63	101	10	87	133	16	120	178
2.9	33	61	6.5	63	101	10.1	87	133	16.5	125	184
3	33	61	6.6	63	101	10.2	87	133	17	125	184
3.1	36	65	6.7	63	101	10.3	87	133	17.5	130	191
3.2	36	65	6.8	69	109	10.4	87	133	18	130	191
3.3	36	65	6.9	69	109	10.5	87	133	19	135	198
3.4	39	70	7	69	109	10.6	87	133	20	140	206

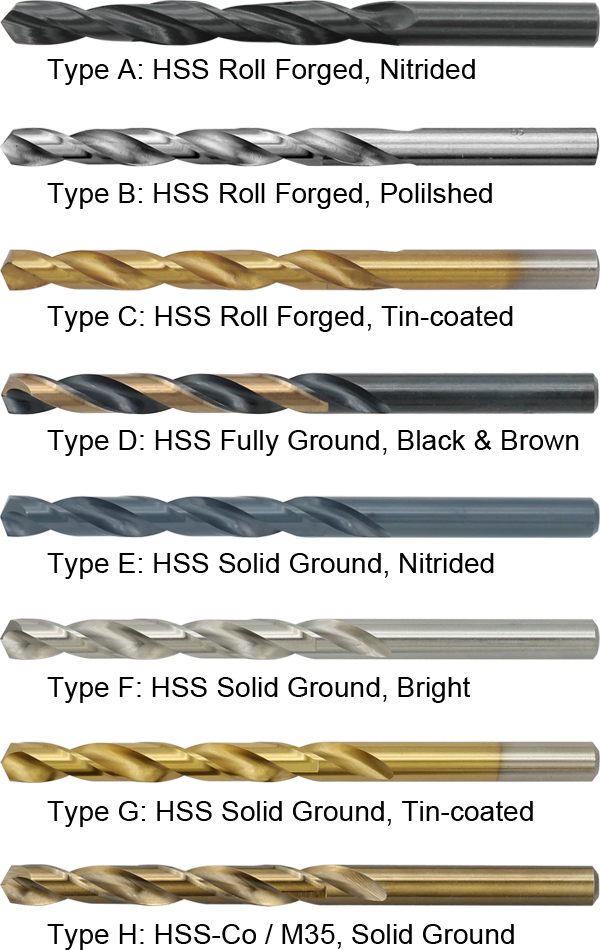

HSS DRILL a.jpg
