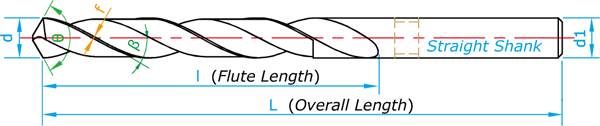

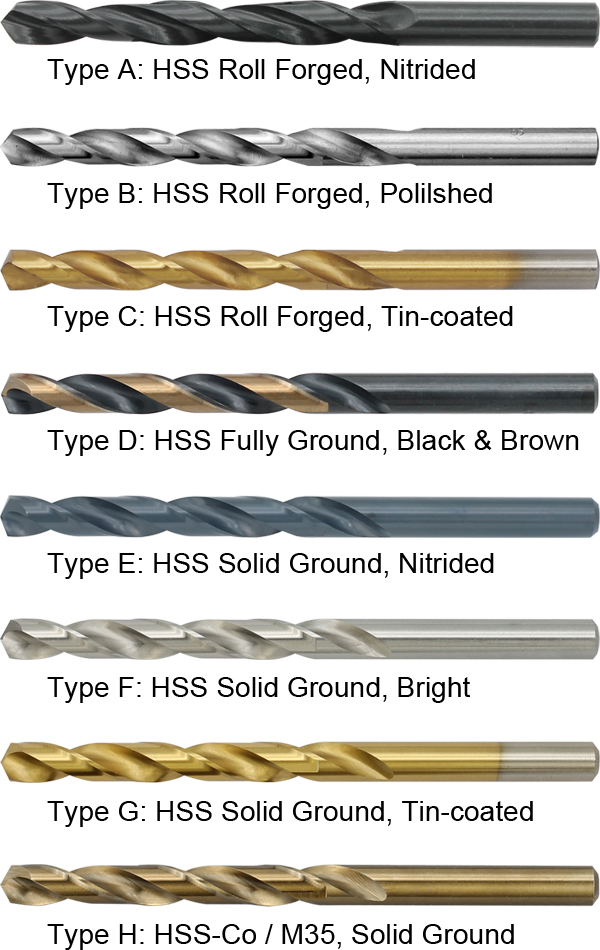

HSS Jobber Length Drills
Norm: ANSI / ASME B94.11
Material.: HSS, M2, M35,
Tech.: Rolled forged, Fully ground.
App.: General purpose - Metal, plastic, wood ...
| Fractional Size | ||||||||||
| d | l | L | d | l | L | d | l | L | ||
| 1/64" | 3/16" | 3/4" | 1/4" | 2-3/4" | 4" | 31/64" | 4-3/8" | 5-7/8" | ||
| 1/32" | 1/2" | 1-3/8" | 17/64" | 2-7/8" | 4-1/8" | 1/2" | 4-1/2" | 6" | ||
| 3/64" | 3/4" | 1-3/4" | 9/32" | 2-15/16" | 4-1/4" | 33/64" | 4-13/16" | 6-5/8" | ||
| 1/16" | 7/8" | 1-7/8" | 19/64" | 3-1/16" | 4-3/8" | 17/32" | 4-13/16" | 6-5/8" | ||
| 5/64" | 1" | 2" | 5/16" | 3-3/16" | 4-1/2" | 35/64" | 4-13/16" | 6-5/8" | ||
| 3/32" | 1-1/4" | 2-1/4" | 21/64" | 3-5/16" | 4-5/8" | 9/16" | 4-13/16" | 6-5/8" | ||
| 7/64" | 1-1/2" | 2-5/8" | 11/32" | 3-7/16" | 4-3/4" | 37/64" | 5-3/16" | 7-1/8" | ||
| 1/8" | 1-5/8" | 2-3/4" | 23/64" | 3-1/2" | 4-7/8" | 19/32" | 5-3/16" | 7-1/8" | ||
| 9/64" | 1-3/4" | 2-7/8" | 3/8" | 3-5/8" | 5" | 39/64" | 5-3/16" | 7-1/8" | ||
| 5/32" | 2" | 3-1/8" | 25/64" | 3-3/4" | 5-1/8" | 5/8" | 5-3/16" | 7-1/8" | ||
| 11/64" | 2-1/8" | 3-1/4" | 13/32" | 3-7/8" | 5-1/4" | 41/64" | 5-3/16" | 7-1/8" | ||
| 3/16" | 2-5/16" | 3-1/2" | 27/64" | 3-15/16" | 5-3/8" | 21/32" | 5-3/16" | 7-1/8" | ||
| 13/64" | 2-7/16" | 3-5/8" | 7/16" | 4-1/16" | 5-1/2" | 43/64" | 5-5/8" | 7-5/8" | ||
| 7/32" | 2-1/2" | 3-3/4" | 29/64" | 4-3/16" | 5-5/8" | 11/16" | 5-5/8" | 7-5/8" | ||
| 15/64" | 2-5/8" | 3-7/8" | 15/32" | 4-5/16" | 5-3/4" | 3/4" | 5-5/8" | 7-5/8" | ||
| Letter Sizes | ||||||||||
| d | l | L | d | l | L | d | l | L | ||
| A | 2-5/8" | 3-7/8" | J | 2-7/8" | 4-1/8" | S | 3-1/2" | 4-7/8" | ||
| B | 2-3/4" | 4" | K | 2-15/16" | 4-1/4" | T | 3-1/2" | 4-7/8" | ||
| C | 2-3/4" | 4" | L | 2-15/16" | 4-1/4" | U | 3-5/8" | 5" | ||
| D | 2-3/4" | 4" | M | 3-1/16" | 4-3/8" | V | 3-5/8" | 5" | ||
| E | 2-3/4" | 4" | N | 3-1/16" | 4-3/8" | W | 3-3/4" | 5-1/8" | ||
| F | 2-7/8" | 4-1/8" | O | 3-3/16" | 4-1/2" | X | 3-3/4" | 5-1/8" | ||
| G | 2-7/8" | 4-1/8" | P | 3-5/16" | 4-5/8" | Y | 3-7/8" | 5-1/4" | ||
| H | 2-7/8" | 4-1/8" | Q | 3-7/16" | 4-3/4" | Z | 3-7/8" | 5-1/4" | ||
| I | 2-7/8" | 4-1/8" | R | 3-7/16" | 4-3/4" | |||||
| Wire guage Sizes | ||||||||||
| d | l | L | d | l | L | d | l | L | ||
| 1 # | 2-5/8" | 3-7/8" | 28 # | 1-3/4" | 2-7/8" | 55 | 7/8" | 1-7/8" | ||
| 2 | 2-5/8" | 3-7/8" | 29 | 1-3/4" | 2-7/8" | 56 | 3/4" | 1-3/4" | ||
| 3 | 2-1/2" | 3-3/4" | 30 | 1-5/8" | 2-3/4" | 57 | 3/4" | 1-3/4" | ||
| 4 | 2-1/2" | 3-3/4" | 31 | 1-5/8" | 2-3/4" | 58 | 11/16" | 1-5/8" | ||
| 5 | 2-1/2" | 3-3/4" | 32 | 1-5/8" | 2-3/4" | 59 | 11/16" | 1-5/8" | ||
| 6 | 2-1/2" | 3-3/4" | 33 | 1-1/2" | 2-5/8" | 60 | 11/16" | 1-5/8" | ||
| 7 | 2-7/16" | 3-5/8" | 34 | 1-1/2" | 2-5/8" | 61 | 11/16" | 1-5/8" | ||
| 8 | 2-7/16" | 3-5/8" | 35 | 1-1/2" | 2-5/8" | 62 | 5/8" | 1-1/2" | ||
| 9 | 2-7/16" | 3-5/8" | 36 | 1-7/16" | 2-1/2" | 63 | 5/8" | 1-1/2" | ||
| 10 | 2-7/16" | 3-5/8" | 37 | 1-7/16" | 2-1/2" | 64 | 5/8" | 1-1/2" | ||
| 11 | 2-5/16" | 3-1/2" | 38 | 1-7/16" | 2-1/2" | 65 | 5/8" | 1-1/2" | ||
| 12 | 2-5/16" | 3-1/2" | 39 | 1-3/8" | 2-3/8" | 66 | 1/2" | 1-3/8" | ||
| 13 | 2-5/16" | 3-1/2" | 40 | 1-3/8" | 2-3/8" | 67 | 1/2" | 1-3/8" | ||
| 14 | 2-3/16" | 3-3/8" | 41 | 1-3/8" | 2-3/8" | 68 | 1/2" | 1-3/8" | ||
| 15 | 2-3/16" | 3-3/8" | 42 | 1-1/4" | 2-1/4" | 69 | 1/2" | 1-3/8" | ||
| 16 | 2-3/16" | 3-3/8" | 43 | 1-1/4" | 2-1/4" | 70 | 3/8" | 1-1/4" | ||
| 17 | 2-3/16" | 3-3/8" | 44 | 1-1/8" | 2-1/8" | 71 | 3/8" | 1-1/4" | ||
| 18 | 2-1/8" | 3-1/4" | 45 | 1-1/8" | 2-1/8" | 72 | 5/16" | 1-1/8" | ||
| 19 | 2-1/8" | 3-1/4" | 46 | 1-1/8" | 2-1/8" | 73 | 5/16" | 1-1/8" | ||
| 20 | 2-1/8" | 3-1/4" | 47 | 1" | 2" | 74 | 1/4" | 1" | ||
| 21 | 2-1/8" | 3-1/4" | 48 | 1" | 2" | 75 | 1/4" | 1" | ||
| 22 | 2" | 3-1/8" | 49 | 1" | 2" | 76 | 3/16" | 7/8" | ||
| 23 | 2" | 3-1/8" | 50 | 1" | 2" | 77 | 3/16" | 7/8" | ||
| 24 | 2" | 3-1/8" | 51 | 1" | 2" | 78 | 3/16" | 7/8" | ||
| 25 | 1-7/8" | 3" | 52 | 7/8" | 1-7/8" | 79 | 1/8" | 3/4" | ||
| 26 | 1-7/8" | 3" | 53 | 7/8" | 1-7/8" | 80 | 1/8" | 3/4" | ||
| 27 | 1-7/8" | 3" | 54 | 7/8" | 1-7/8" | |||||
