Taper Shank Twist Drills

HSS Taper Shank Twist DrillsNorm: DIN345Material: HSS, HSS-ETech.: Milled flute, Rolled ForgedApp.: General purpose - MetalHSS Taper Shank Twist DrillsNorm: ANSI / ASMEMaterial: HSS, HSS-ETech.: Milled flute, Rolled ForgedApp.: General purpose - Metal

HSS Taper Shank Twist Drills

Norm: DIN345

Material: HSS, HSS-E

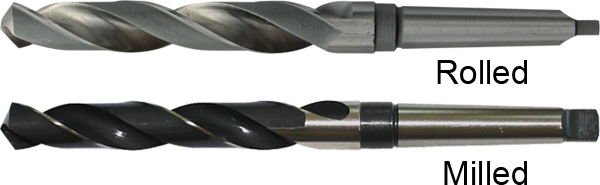

Tech.: Milled flute, Rolled Forged

App.: General purpose - Metal

P7 TS DRILL 2G.jpg

d	l	L	M.T. No	d	l	L	M.T. No	d	l	L	M.T. No
6.5	63	144	MT1	18	130	228	MT2	33	185	334	MT4
7	69	150	MT1	18.5	135	233	MT2	34	190	339	MT4
7.5	69	150	MT1	19	135	233	MT2	35	190	339	MT4
8	75	156	MT1	19.5	140	238	MT2	36	195	344	MT4
8.5	75	156	MT1	20	140	238	MT2	37	195	344	MT4
9	81	162	MT1	20.5	145	243	MT2	38	200	349	MT4
9.5	81	162	MT1	21	145	243	MT2	39	200	349	MT4
10	87	168	MT1	21.5	150	248	MT2	40	200	349	MT4
10.5	87	168	MT1	22	150	248	MT2	42	205	354	MT4
11	94	175	MT1	22.5	155	253	MT2	45	210	359	MT4
11.5	94	175	MT1	23	155	253	MT2	48	220	369	MT4
12	101	182	MT1	23.5	155	276	MT3	50	220	369	MT4
12.5	101	182	MT1	24	160	281	MT3	55	230	417	MT5
13	101	182	MT1	24.5	160	281	MT3	60	235	422	MT5
13.5	108	189	MT1	25	160	281	MT3	65	245	432	MT5
14	108	189	MT1	25.5	165	286	MT3	70	250	437	MT5
14.5	114	212	MT2	26	165	286	MT3	72	255	442	MT5
15	114	212	MT2	27	170	291	MT3	75	255	442	MT5
15.5	120	218	MT2	28	170	291	MT3	80	260	514	MT6
16	120	218	MT2	29	175	296	MT3	85	265	519	MT6
16.5	125	223	MT2	30	175	296	MT3	90	270	524	MT6
17	125	223	MT2	31	180	301	MT3	95	275	529	MT6
17.5	130	228	MT2	32	185	334	MT4	100	280	534	MT6

HSS Taper Shank Twist Drills

Norm: ANSI / ASME

Material: HSS, HSS-E

Tech.: Milled flute, Rolled Forged

App.: General purpose - Metal

P7 TS DRILL 3BM.jpg

M.T. No

1/4"

2-7/8"

6-1/8"

MT1

3/4"

5-7/8"

9-3/4"

MT2

1-1/2"

9-3/8"

15"

MT4

9/32"

6-1/4"

MT1

25/32"

9-7/8"

MT2

1-9/16"

9-5/8"

16-5/8"

MT5

5/16"

3-1/8"

6-3/8"

MT1

13/16"

6-1/8"

10-3/4"

MT3

1-5/8"

10"

17"

MT5

11/32"

3-1/4"

6-1/2"

MT1

27/32"

6-1/8"

10-3/4"

MT3

1-11/16"

10-1/8"

17-1/8"

MT5

3/8"

3-1/2"

6-3/4"

MT1

7/8"

6-1/8"

10-3/4"

MT3

1-3/4"

10-1/8"

17-1/8"

MT5

13/32"

3-5/8"

MT1

29/32"

6-1/8"

10-3/4"

MT3

1-13/16"

10-1/8"

17-1/8"

MT5

7/16"

3-7/8"

7-1/4"

MT1

15/16"

6-1/8"

10-3/4"

MT3

1-7/8"

10-3/8"

17-3/8"

MT5

15/32"

4-1/8"

7-1/2"

MT1

31/32"

6-3/8"

11"

MT3

10-3/8"

17-3/8"

MT5

1/2"

4-3/8"

8-1/8"

MT2

6-3/8"

11"

MT3

2-1/8"

10-1/4"

17-3/8"

MT5

17/32"

4-5/8"

8-1/2"

MT2

1-1/16"

6-5/8"

11-1/4"

MT3

2-1/4"

10-1/8"

17-3/8"

MT5

9/16"

4-7/8"

8-3/4"

MT2

1-1/8"

7-1/8"

12-1/2"

MT4

2-3/8"

10-1/8"

17-3/8"

MT5

19/32"

4-7/8"

8-3/4"

MT2

1-3/16"

7-3/8"

13"

MT4

2-1/2"

11-1/4"

18-3/4"

MT5

5/8"

4-7/8"

8-3/4"

MT2

1-1/4"

7-7/8"

13-1/2"

MT4

2-5/8"

11-7/8"

19-1/2"

MT5

21/32"

5-1/8"

MT2

1-5/16"

8-5/8"

14-1/4"

MT4

2-3/4"

12-3/4"

20-3/8"

MT5

11/16"

5-3/8"

9-1/4"

MT2

1-3/8"

8-7/8"

14-1/2"

MT4

2-7/8"

13-3/8"

21-1/8"

MT5

23/32"

5-5/8"

9-1/2"

MT2

1-7/16"

9-1/8"

14-3/4"

MT4

14"

21-3/4"

MT5
