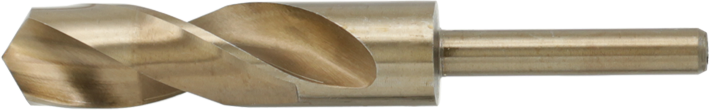

HSS Silver & Deming Drill, 1/2" reduced shank
Norm. ANSI / ASME
Material: HSS, HSS-Co
Tech.: Roll forged, Milled
App.: General purpose - Metal, plastic, wood...
| d | l | L | d | l | L | d | l | L | ||
| 17/32" | 3" | 6" | 25/32" | 3" | 6" | 1-1/16" | 3" | 6" | ||
| 9/16" | 3" | 6" | 13/16" | 3" | 6" | 1-1/8" | 3" | 6" | ||
| 19/32" | 3" | 6" | 27/32" | 3" | 6" | 1-3/16" | 3" | 6" | ||
| 5/8" | 3" | 6" | 7/8" | 3" | 6" | 1-1/4" | 3" | 6" | ||
| 21/32" | 3" | 6" | 29/64" | 3" | 6" | 1-5/16" | 3" | 6" | ||
| 11/16" | 3" | 6" | 15/16" | 3" | 6" | 1-3/8" | 3" | 6" | ||
| 23/32" | 3" | 6" | 31/32" | 3" | 6" | 1-7/16" | 3" | 6" | ||
| 3/4" | 3" | 6" | 1" | 3" | 6" | 1-1/2" | 3" | 6" |
HSS Silver & Deming Drill, 3/4" reduced shank
Norm. ANSI / ASME
Material: HSS, HSS-Co
Tech.: Roll forged, Milled
App.: General purpose - Metal, plastic, wood...
| d | l | L | d | l | L | d | l | L | ||
| 1" | 3" | 6" | 1-1/4" | 3" | 6" | 1-5/8" | 3" | 6" | ||
| 1-1/32" | 3" | 6" | 1-9/32" | 3" | 6" | 1-11/16" | 3" | 6" | ||
| 1-1/16" | 3" | 6" | 1-5/16" | 3" | 6" | 1-3/4" | 3" | 6" | ||
| 1-3/32" | 3" | 6" | 1-11/32" | 3" | 6" | 1-13/16" | 3" | 6" | ||
| 1-1/8" | 3" | 6" | 1-3/8" | 3" | 6" | 1-7/8" | 3" | 6" | ||
| 1-5/32" | 3" | 6" | 1-7/16" | 3" | 6" | 1-15/16" | 3" | 6" | ||
| 1-3/16" | 3" | 6" | 1-1/2" | 3" | 6" | 2" | 3" | 6" | ||
| 1-7/32" | 3" | 6" | 1-9/16" | 3" | 6" |
